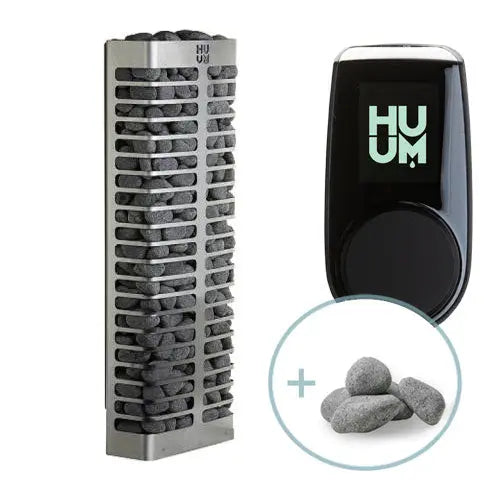

HUUM STEEL Mini Series 3.5kW Sauna Heater Package

This HUUM Steel Mini sauna heater package comes complete with the traditionally designed STEEL Mini 3.5kW sauna heater, UKU control (WiFi optional), and sauna stones - everything you need to build your dream sauna experience. The package has been combined for use in sauna rooms up to 212 cubic feet (CF).

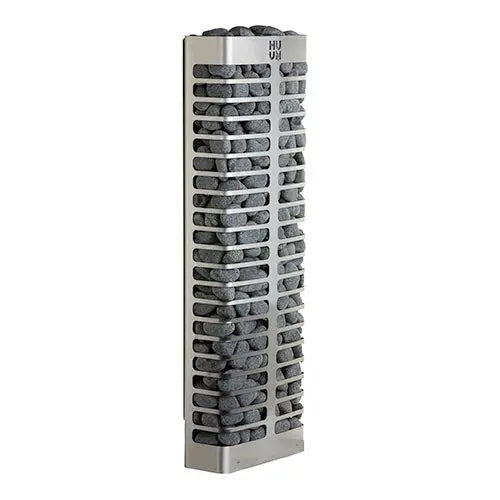

STEEL Mini 3.5kW Sauna Heater

• Slender design
• Suitable for use in small saunas with limited space
• Small safety distances
• Heats up to 25% faster due to internal air duct
• For sauna rooms from 123 to 212 cu. ft.
• Works with UKU controls (sold separately)
• 133 pound stone capacity (required 4 boxes sold separately)
• Direct contact between stones and heating elements
• More exposed stones creates a longer and milder heat
• Stainless steel construction
• Stainless steel, industrial quality heating elements
• Wall-mount model
• Designed, engineered, and made in Estonia
• Dimensions: 12.6" W (320mm) x 6" D (150mm) x 38.4" H (975mm)
• Limited 5-year warranty (excluding elements)

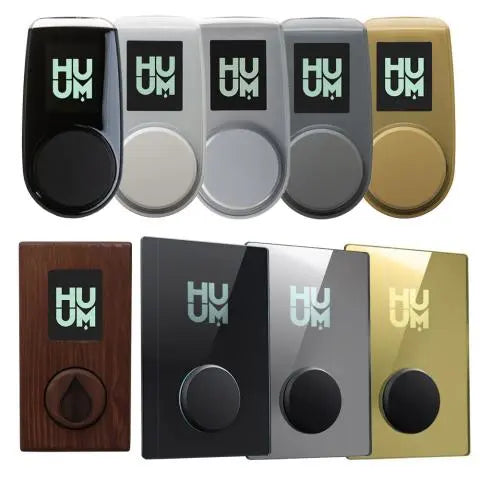

UKU

• Sleek Black control display panel
• Multiple Color Options available (additional charges apply)
• Settable on/off, time, temperature, and delay
• Settable temperature range of 104-230F
• Delayed start up to 48hrs in advance
• Optional Built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
• 8 Language options: English, German, Russian, Italian, Finnish, Estonian, Polish and French
• Inside/outside sauna room installation
• Optional smart heating setting
• Available decorative control display panels
• Displays set temperature and room temperature
• Temperature sensor
• Door sensor to keep the heat inside the room
• Remotely located main control module
• Connects to lights and ventilation
• Overheat protection
• Child safety lock
• Control Console Dimensions: 2.2"W (55mm) x 0.9"D (22mm) x 4.1"H (105mm)
• Main Control Module Dimensions: 3.5"W (90mm) x 2.3"D (58mm) x 5.6"H (142mm)

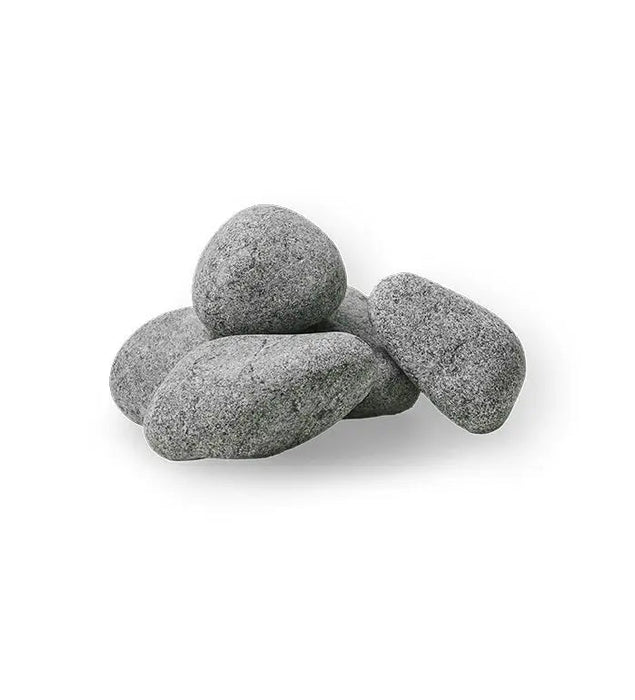

Stones 12

• Olivine diabase sauna stones
• Rounded shape to complement heater design
• Durable with high-heat capacity
• Stones range from 1" to 2" (3-5 cm)

STEEL Mini 3.5kW Sauna Heater

• 3.5kW sauna heater
• Wall fastening bracket
• Installation and operation manual
• 5-Year limited warranty (excluding elements)

UKU

• Black Control console
• Main control module
• Temperature sensor
• Door sensor
• Control display panel cable
• Temperature sensor cable
• Door sensor cable
• Installation and operation manual
• 5-Year limited warranty

Stones 12

• 132 lbs of 1" to 2" (3-5 cm) round Olivine sauna stones

Model: STEEL Mini 3.5STU Pkg
Heater: STEEL Mini 3.5

Heater Specifications

• Kilowatt Rating: 3.5 kW
• Minimum Cubic Feet: 123 CF
• Maximum Cubic Feet: 212 CF
• Heater Weight: 32 lbs
• Shipping Weight with Sauna Stones: 165 lbs
• Voltage: 240V, Single Phase
• Width: 12.6" (320 mm)
• Depth: 6" (150 mm)
• Height: 38.4" (975 mm)

Control System: UKU

UKU Specifications

• Minimum Temperature Setting: 104°F
• Maximum Temperature Setting: 230°F
• Shipping Weight: 20 lbs

Console Dimensions:

• Width: 2.2" (55 mm)
• Depth: 0.9" (22 mm)
• Height: 4.1" (105 mm)

Main Module Dimensions:

• Width: 3.5" (90 mm)
• Depth: 2.3" (58 mm)
• Height: 5.6" (142 mm)

Cables:

• Display Panel Cable: Length 9.8 ft, AWG 22
• Temp Sensor Cable: Length 16.4 ft, AWG 24
• Door Sensor Cable: Length 16.4 ft, AWG 24
