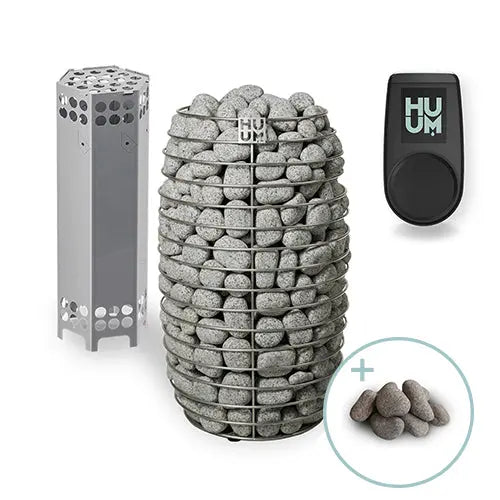

HUUM HIVE Mini Series 9.0kW Sauna Heater Package

The HUUM HIVE Mini 9STU sauna heater package features all the necessities that will give your sauna space a touch of tradition. This all-inclusive package includes the HIVE Mini 9kW sauna heater, UKU control with optional Wi-Fi, and 330 lbs of sauna stones. It is engineered for sauna rooms up to 530 cubic feet (CF).

Precision-engineered and crafted in Estonia for a true European sauna experience.

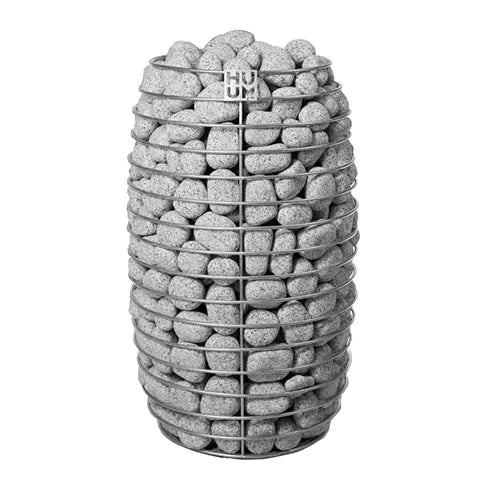

HIVE Mini 9.0kW Sauna Heater

• Elegant design
• 240V/1PH operation
• For sauna rooms from 282 to 530 cu. ft.
• Works with UKU controls
• 330 pound stone capacity
• Direct contact between stones and heating elements
• More exposed stones create a longer and milder heat
• Stainless steel construction
• Stainless steel, industrial quality heating elements
• Floor model with adjustable legs

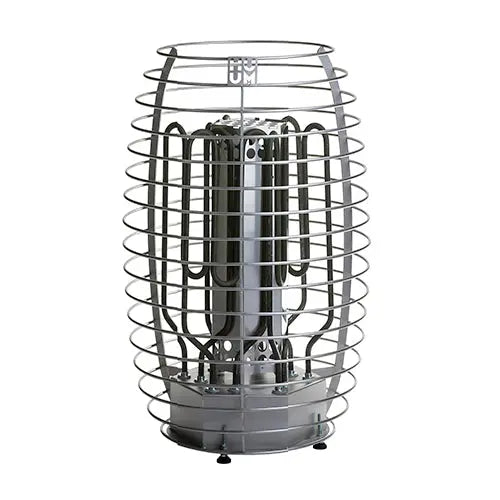

• Air tunnel shortens heat-up time and increases life of heating elements
• SGS listed
• Designed, engineered, and made in Estonia
• Dimensions: 18.1"Diameter (460mm) x 29.5"H (750mm)
• Limited 5-year warranty (excluding elements)

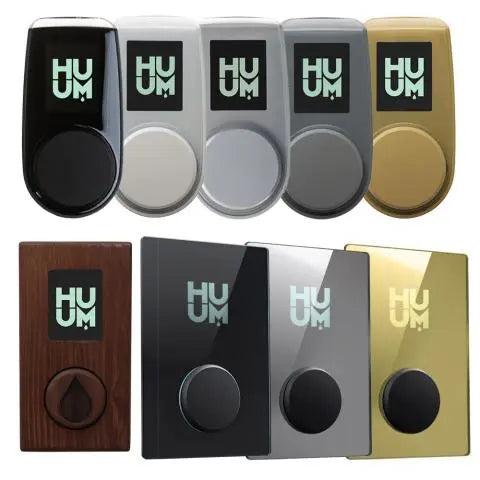

UKU Control

• Sleek black control display panel
• Multiple color options available (additional charges apply)
• Settable on/off, time, temperature, and delay
• Settable temperature range of 104-230°F
• Delayed start up to 48hrs in advance
• Optional built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
• 8 language options: English, German, Russian, Italian, Finnish, Estonian, Polish and French
• Inside/outside sauna room installation
• Optional smart heating setting
• Available decorative control display panels
• Displays set temperature and room temperature
• Temperature sensor
• Door sensor to keep the heat inside the room
• Remotely located main control module
• Connects to lights and ventilation
• Overheat protection
• Child safety lock
• Control Console Dimensions: 2.2"W (55mm) x 0.9"D (22mm) x 4.1"H (105mm)
• Main Control Module Dimensions: 3.5"W (90mm) x 2.3"D (58mm) x 5.6"H (142mm)
• Limited 5-year warranty

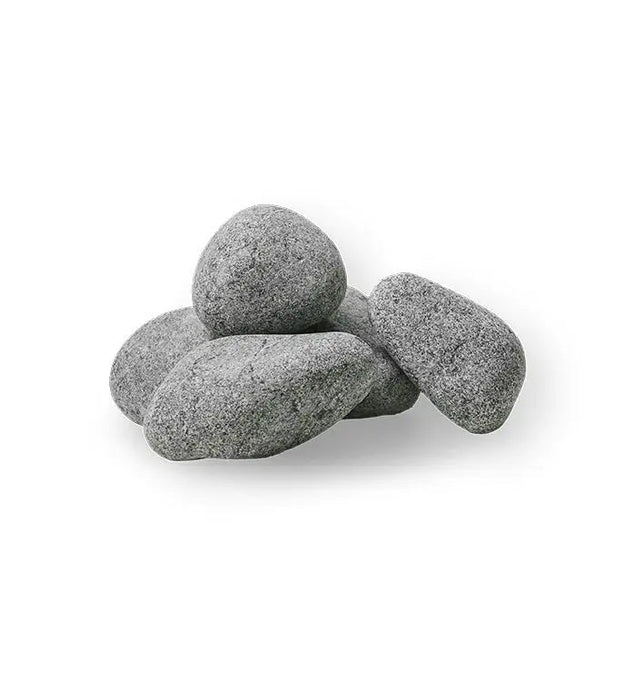

Stones 24

• Olivine diabase sauna stones
• Rounded shape to complement heater design
• Durable with high-heat capacity
• Stones range from 2" to 4" (5-10 cm)

HIVE Mini 9.0kW Sauna Heater

• 9.0kW Sauna Heater
• Adjustable Legs
• Pre-Installed HIVE Air Tunnel
• Installation and Operation Manual
• 5-Year Limited Warranty (Excluding Elements)

UKU Control

• Black Control Console
• Main Control Module
• Temperature Sensor
• Door Sensor
• Control Display Panel Cable
• Temperature Sensor Cable
• Door Sensor Cable
• Installation and Operation Manual
• 5-Year Limited Warranty

Stones 24

• 330 lbs of 2" - 4" (5-10 cm) Round Sauna Stones

Model

• Package: HIVE MINI 9STU PKG
• Heater Model: HIVE Mini 9

Heater Specifications

• Kilowatt Rating: 9.0 kW
• Minimum Cubic Feet: 282
• Maximum Cubic Feet: 530
• Heater Weight: 40.3 lbs
• Shipping Weight (with Sauna Stones): 370.3 lbs
• Voltage & Phase: 240V, Single-Phase
• Amperage: 37.5 A
• Circuit Breaker: 50 A
• Wire Size: AWG 8
• Diameter: 18.1" (460 mm)
• Height: 29.5" (750 mm)

UKU Control Specifications

• Minimum Temperature Setting: 104°F
• Maximum Temperature Setting: 230°F
• Shipping Weight: 20 lbs

Console Dimensions

• Width: 2.2" (55 mm)
• Depth: 0.9" (22 mm)
• Height: 4.1" (105 mm)

Main Module Dimensions

• Width: 3.5" (90 mm)
• Depth: 2.3" (58 mm)
• Height: 5.6" (142 mm)

Display Panel Cable

• Length: 9.8 ft
• Wire Size: AWG 22

Temperature Sensor Cable

• Length: 16.4 ft
• Wire Size: AWG 24

Door Sensor Cable

• Length: 16.4 ft
• Wire Size: AWG 24
