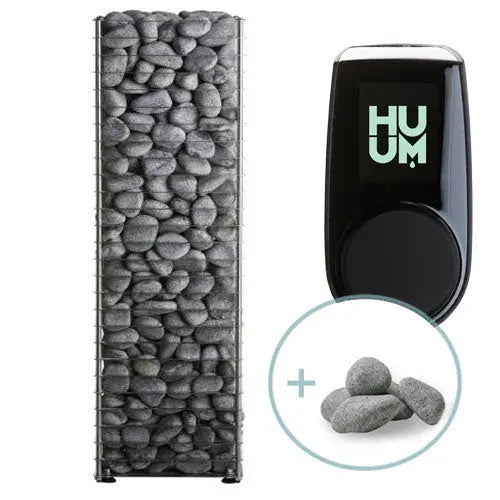

HUUM CLIFF Series 9kW Sauna Heater Package

This HUUM Cliff sauna heater package comes complete with the traditionally designed CLIFF 9kW sauna heater, UKU control (WiFi optional), and sauna stones - everything you need to build your dream sauna experience. The package has been combined for use in sauna rooms up to 460 cu. ft.

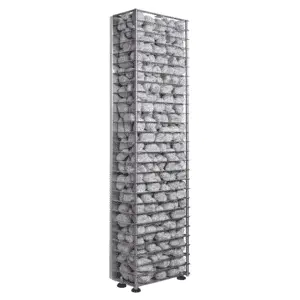

CLIFF 9kW Sauna Heater

• Slim design
• Suitable for use in saunas with limited space
• Small safety distances
• Heats up to 25% faster due to internal air duct
• For sauna rooms from 283 to 460 cu. ft.
• Works with UKU controls (sold separately)
• 165 lb. stone capacity (required 5 boxes sold separately)
• Removable rib(s) for more accurate stacking of stones
• Direct contact between stones and heating elements
• More exposed stones creates a longer and milder heat
• Stainless steel construction
• Stainless steel, industrial quality heating elements
• Floor model
• Designed, engineered, and made in Estonia
• Dimensions: 10.6" W (270mm) x 10.6" W (270mm) x 38.4" H (975mm)
• Limited 5-year warranty (excluding elements)

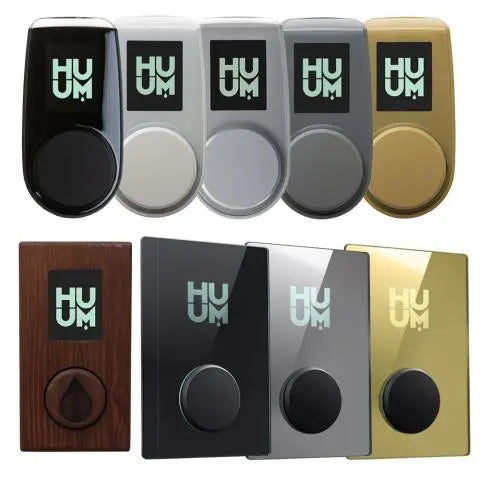

UKU

• Sleek Black control display panel
• Multiple Color Options available (additional charges apply)
• Settable on/off, time, temperature, and delay
• Settable temperature range of 104-230F
• Delayed start up to 48hrs in advance
• Optional Built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
• 8 Language options: English, German, Russian, Italian, Finnish, Estonian, Polish and French
• Inside/outside sauna room installation
• Optional smart heating setting
• Available decorative control display panels
• Displays set temperature and room temperature
• Temperature sensor
• Door sensor to keep the heat inside the room
• Remotely located main control module
• Connects to lights and ventilation
• Overheat protection
• Child safety lock
• Control Console Dimensions: 2.2"W (55mm) x 0.9"D (22mm) x 4.1"H (105mm)
• Main Control Module Dimensions: 3.5"W (90mm) x 2.3"D (58mm) x 5.6"H (142mm)

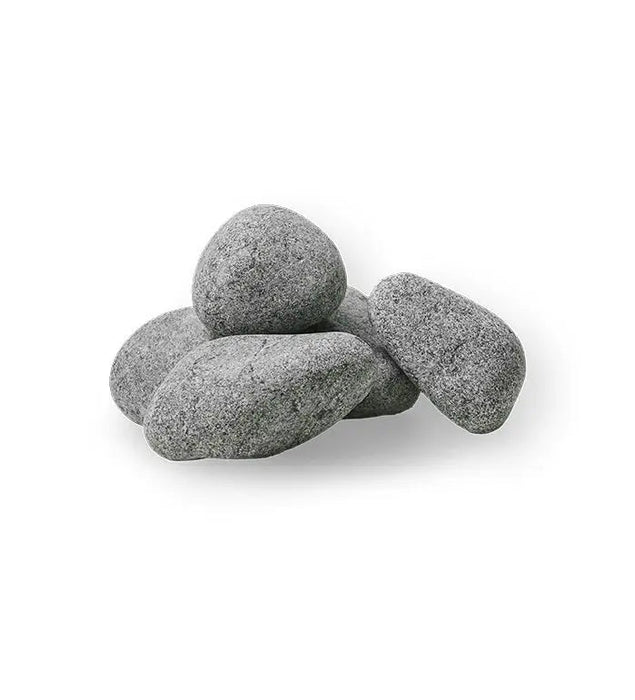

Stones 12

• Olivine diabase sauna stones
• Rounded shape to complement heater design
• Durable with high-heat capacity
• Stones range from 1" to 2" (3-5 cm)

CLIFF 9kW Sauna Heater

• 9kW sauna heater
• 2 prop blocks (for removal of sauna rib slats)
• Installation and operation manual
• 5-Year limited warranty (excluding elements)

UKU

• Black Control console
• Main control module
• Temperature sensor
• Door sensor
• Control display panel cable
• Temperature sensor cable
• Door sensor cable
• Installation and operation manual
• 5-Year limited warranty

Stones 12

• 165 lbs of 1" to 2" (3-5 cm) round Olivine sauna stones

Model

• CLIFF 9STU PKG
• CLIFF 9

Heater Specifications

• Kilowatt Rating: 9 kW
• Minimum Cubic Feet: 283 cu. ft.
• Maximum Cubic Feet: 460 cu. ft.
• Heater Weight: 35.2 lbs (16 kg)
• Shipping Weight with Sauna Stones: 200 lbs (91 kg)
• 240V, Single Phase Amperage: 37.5 A
• Width: 10.6" (270 mm)
• Depth: 10.6" (270 mm)
• Height: 38.4" (975 mm)

UKU Controller Specifications

• Minimum Temperature Setting: 104°F
• Maximum Temperature Setting: 230°F
• Shipping Weight: 20 lbs

Console Dimensions

• Width: 2.2" (55 mm)
• Depth: 0.9" (22 mm)
• Height: 4.1" (105 mm)

Main Module Dimensions

• Width: 3.5" (90 mm)
• Depth: 2.3" (58 mm)
• Height: 5.6" (142 mm)

Display Panel Cable

• Length: 9.8 ft
• AWG: 22

Temperature Sensor Cable

• Length: 16.4 ft
• AWG: 24

Door Sensor Cable

Length: 16.4 ft

AWG: 24
