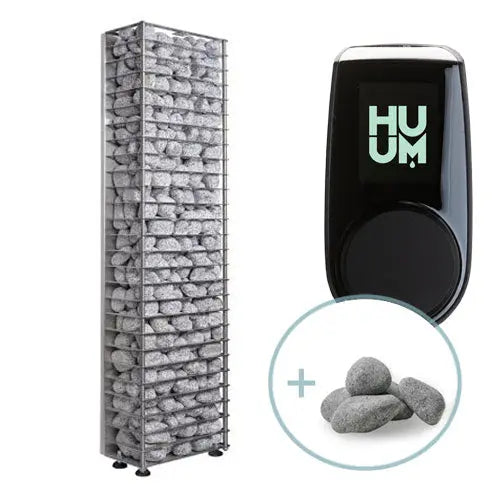

HUUM CLIFF Mini Series 4kW Sauna Heater Package

This HUUM Cliff Mini sauna heater package comes complete with the traditionally designed CLIFF Mini 4kW sauna heater, UKU control (WiFi optional), and sauna stones - everything you need to build your dream sauna experience. The package has been combined for use in sauna rooms up to 177 cu. ft.

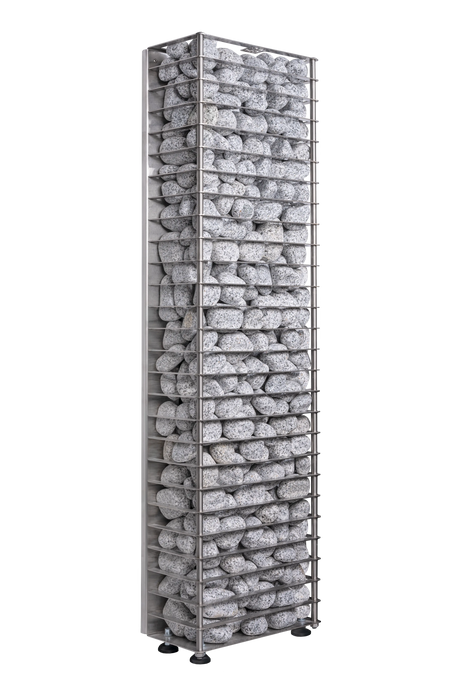

CLIFF Mini 4kW Sauna Heater

• Slender design
• Suitable for use in small saunas with limited space
• Small safety distances
• Heats up to 25% faster due to internal air duct
• For sauna rooms from 106 to 177 cu. ft.
• 132 lb. stone capacity
• Removable rib(s) for more accurate stacking of stones
• Direct contact between stones and heating elements
• More exposed stones create a longer and milder heat
• Stainless steel construction
• Stainless steel, industrial quality heating elements
• Wall-mount model
• Designed, engineered, and made in Estonia
• Dimensions: 10.6" W (270mm) x 6.3" D (160mm) x 38.4" H (975mm)
• Limited 5-year warranty (excluding elements)

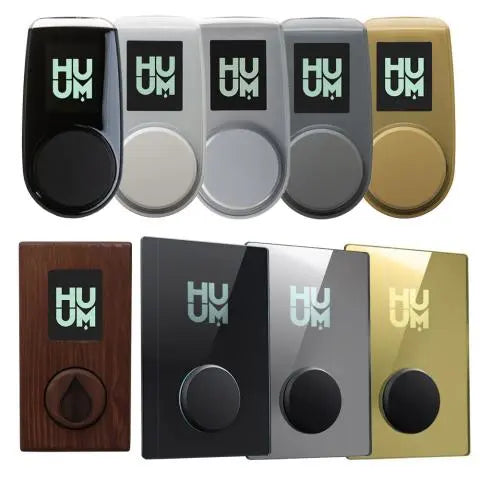

UKU

• Sleek Black control display panel
• Multiple Color Options available (additional charges apply)
• Settable on/off, time, temperature, and delay
• Settable temperature range of 104-230F
• Delayed start up to 48hrs in advance
• Optional Built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
• 8 Language options: English, German, Russian, Italian, Finnish, Estonian, Polish and French
• Inside/outside sauna room installation
• Optional smart heating setting
• Available decorative control display panels
• Displays set temperature and room temperature
• Temperature sensor
• Door sensor to keep the heat inside the room
• Remotely located main control module
• Connects to lights and ventilation
• Overheat protection
• Child safety lock
• Control Console Dimensions: 2.2"W (55mm) x 0.9"D (22mm) x 4.1"H (105mm)
• Main Control Module Dimensions: 3.5"W (90mm) x 2.3"D (58mm) x 5.6"H (142mm)

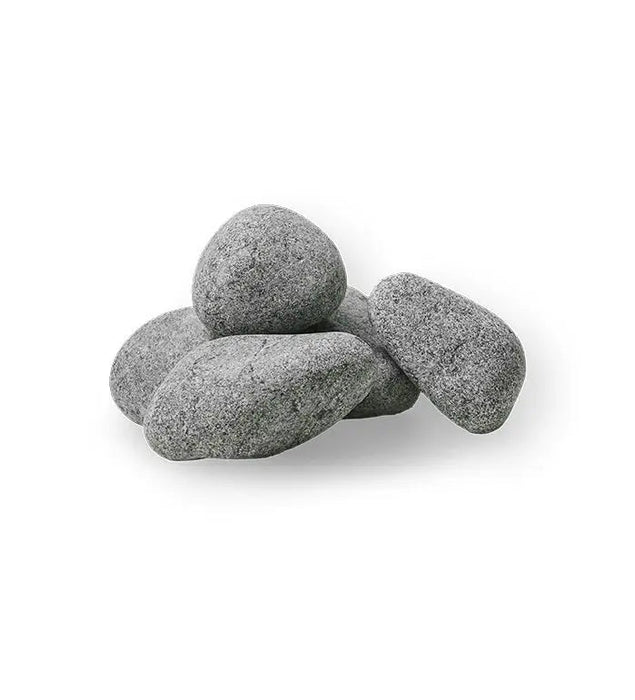

Stones 12

• Olivine diabase sauna stones
• Rounded shape to complement heater design
• Durable with high-heat capacity
• Stones range from 1" to 2" (3-5 cm)

CLIFF Mini 4kW Sauna Heater

• 4kW sauna heater
• 2 prop blocks (for removal of sauna rib slats)
• Installation and operation manual
• 5-Year limited warranty (excluding elements)

UKU

• Black Control console
• Main control module
• Temperature sensor
• Door sensor
• Control display panel cable
• Temperature sensor cable
• Door sensor cable
• Installation and operation manual
• 5-Year limited warranty

Stones 12

• 132 lbs. of 1" to 2" (3-5 cm) round Olivine sauna stones

Model

• CLIFF MINI 4STU PKG
• CLIFF MINI 4

Heater Specifications

• Kilowatt Rating: 4 kW
• Minimum Cubic Feet: 106 cu. ft.
• Maximum Cubic Feet: 177 cu. ft.
• Heater Weight: 33 lbs (15 kg)
• Shipping Weight with Sauna Stones: 165 lbs (75 kg)
• Voltage: 240V, Single Phase
• Amperage: 14.58 A
• Width: 10.6" (270 mm)
• Depth: 6.3" (160 mm)
• Height: 38.4" (975 mm)

UKU Control Specifications

• Minimum Temperature Setting: 104°F
• Maximum Temperature Setting: 230°F
• Shipping Weight: 20 lbs

Console Dimensions

• Width: 2.2" (55 mm)
• Depth: 0.9" (22 mm)
• Height: 4.1" (105 mm)

Main Module Dimensions

• Width: 3.5" (90 mm)
• Depth: 2.3" (58 mm)
• Height: 5.6" (142 mm)

Display Panel Cable

• Length: 9.8 ft
• AWG: 22

Temperature Sensor Cable

• Length: 16.4 ft
• AWG: 24

Door Sensor Cable

• Length: 16.4 ft
• AWG: 24
