Harvia Virta Pro HL160E Electric Sauna Heater Package 16kW
Complete Harvia Virta Pro Series 16.0kW Sauna Heater Package

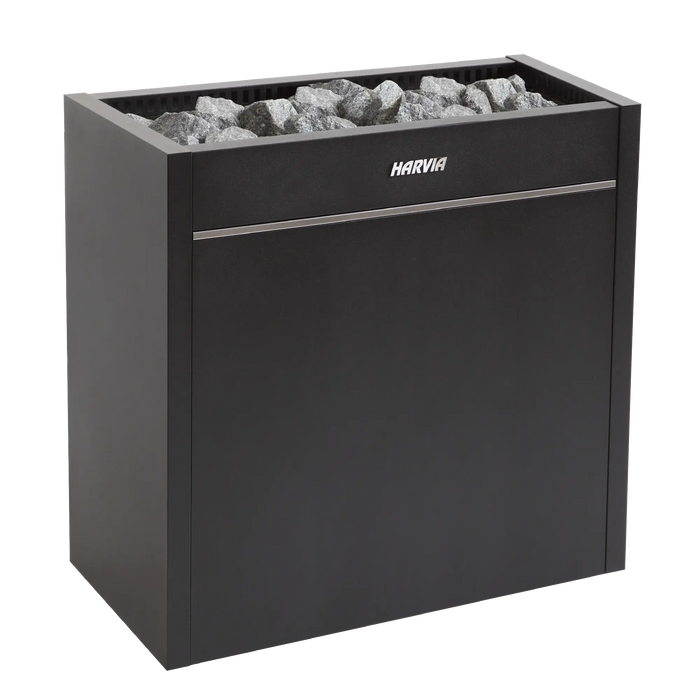

The 16kW Harvia Virta Pro HL160E electric sauna heater provides ample heating power for saunas in health clubs, spas, hotels, and apartment buildings. The Virta Pro features robust construction, with heating elements that are divided into two groups for exceptionally easy maintenance making it ideal for sauna rooms with heavy use. This stylish sauna heater provides even the most demanding bathers with a professional sauna experience.
This package includes everything you need to run your sauna.
Features
- Side-Wall or Floor mount
- Stainless Steel construction
- For sauna rooms from 354 to 918 cu. ft.
- Works with Xenio Control
- Work with Xenio Power Extension unit
- Direct rock-to-heating element contact
- Available in 240V/1PH
- Industrial grade, serviceable heating elements
- Designed, engineered, and made in Finland
- Requires a minimum of 200lbs of stones (5 boxes-AC3020)
- Please note that each natural stone is unique in shape and size. We recommend purchasing an additional box of sauna stones to allow you to choose the highest quality of stone for fit, form, and function (Additional freight charges will apply).

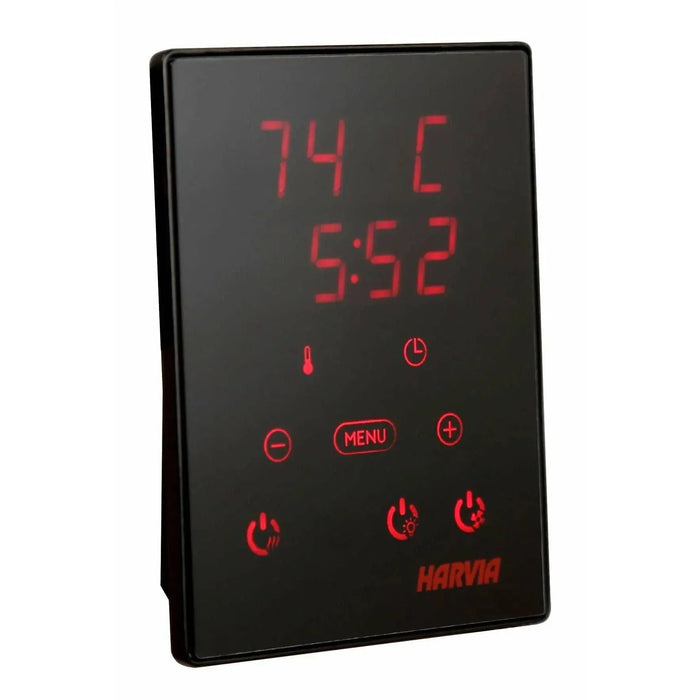

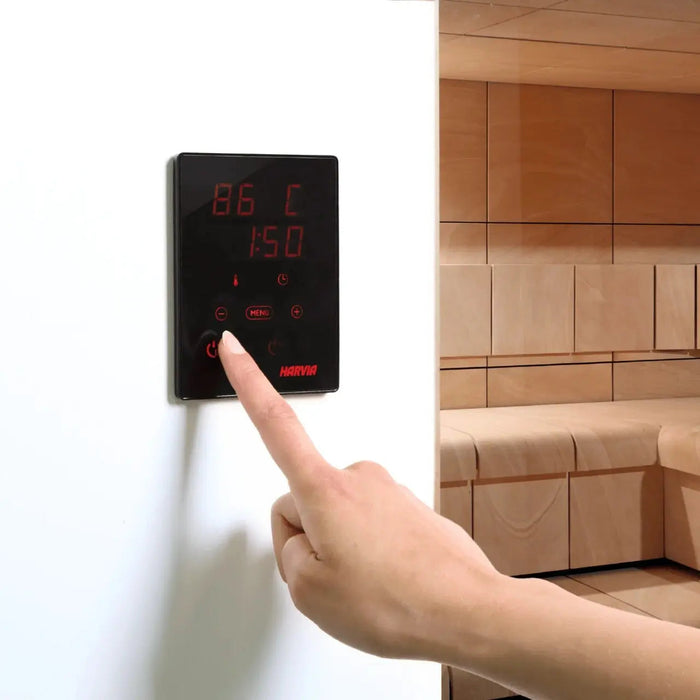

Features of Harvia Xenio CX45 Sauna Control Package:
- For up to 17kw heaters (U1) and 15kw heaters (U3)
- Works with Cilindro, Club and Virta series heaters (Not Combi)
- Contols operating time
- Controls temperature
- Controls lighting
- Controls fan
- Can be wall-mounted or surface embedded
- 3.4"W x 1"D x 4.4"H

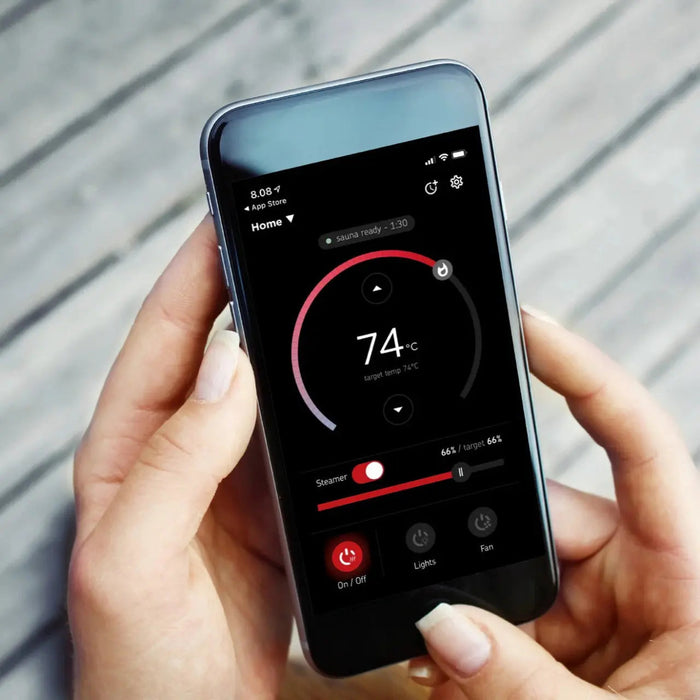

About MyHarvia Application
- Control lighting
- Control of fan
- On-time feature
- Timed start feature
- Week Clock
- Safety device option
- Time zone selection
- Daylight saving selection
- Temperature adjustment
- Humidity adjustment
- Application not available in all countries
- Can be connected to unlimited amount of devices
- Access to control panel updates for the latest features and improved functions

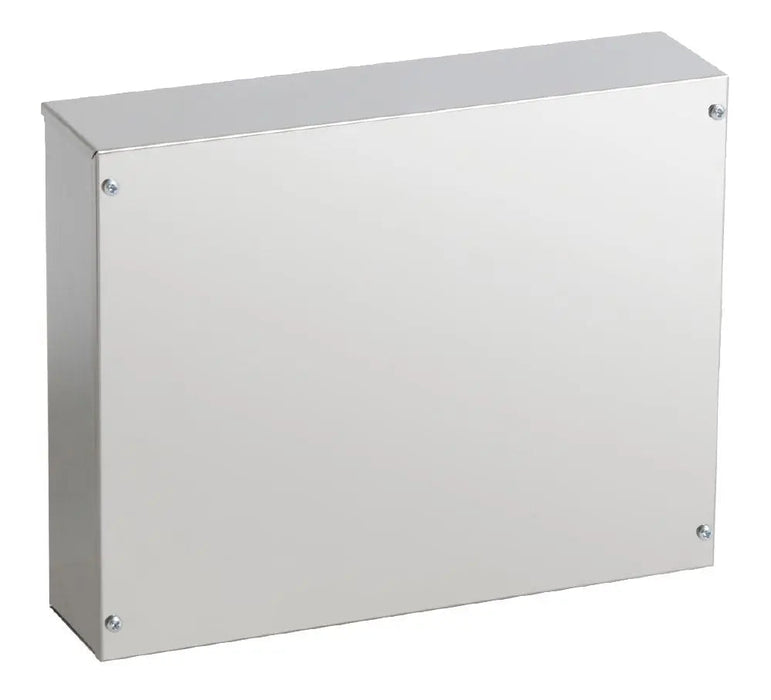

Features of Harvia Xenio Power Extension Unit:
- Works with Xenio CX30/45/170 Control Units
- Increases max load range to 38kW
- Can be wall mounted
- 14.3"W x 2.9"D x 10.5"H
- Supply Voltage (Per extension box) 240 V 1Ph

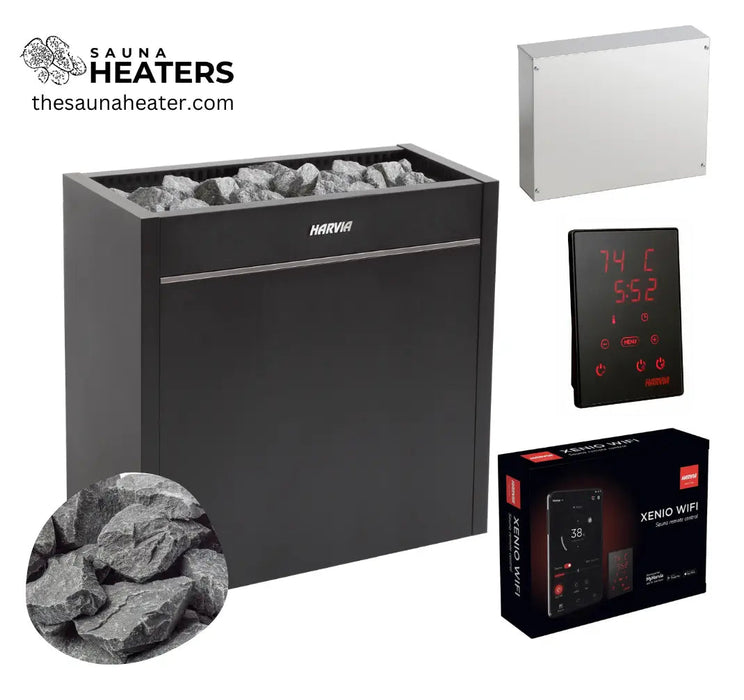

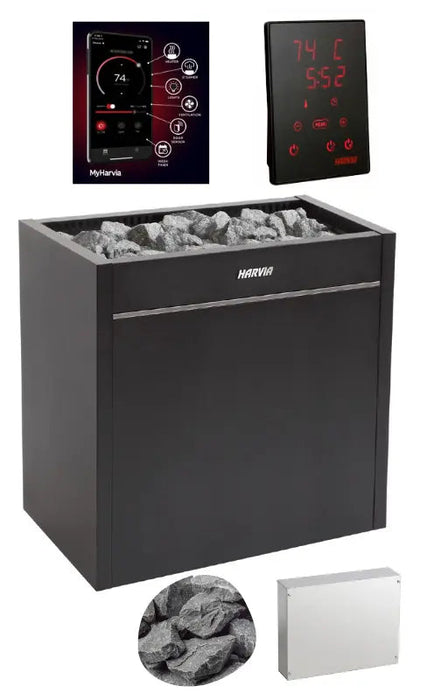

Package Includes
- Harvia Virta Pro HL160E Electric Sauna Heater x 1

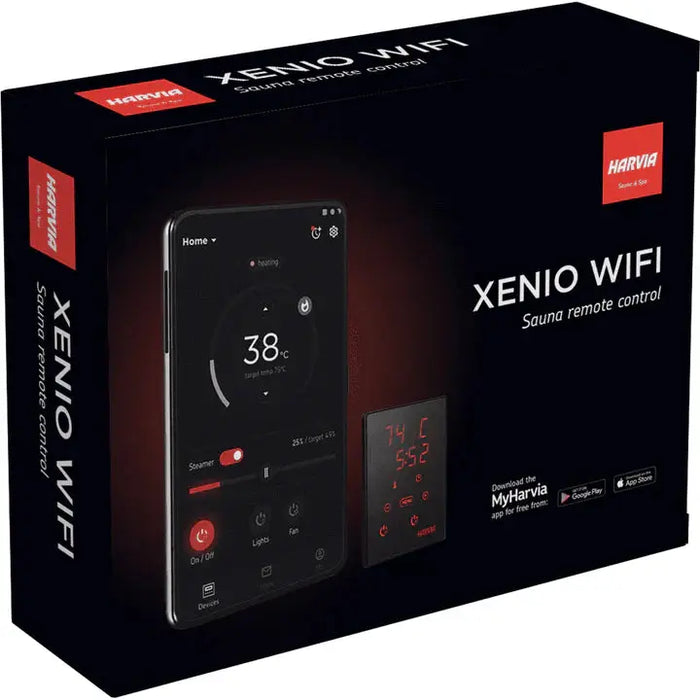

- Harvia Xenio CX45 WiFi Sauna Control Package x 1
-

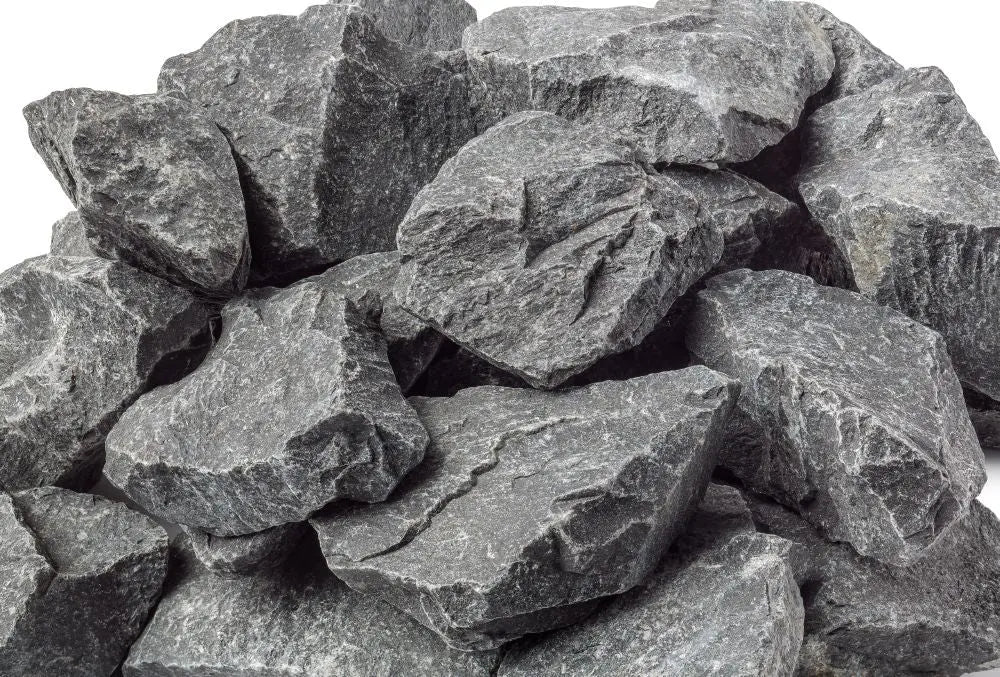

Harvia AC3020 Special Sauna Stones x 5
- Harvia Xenio Power Extension Unit for CX30/45 Controls x 1
Specifications
| Model | Virta Pro HL160E |
|---|---|
| Kilowatt Rating (KW) | 16kW |
| Primary Fuel | Electric |
| Minimum Adjusted Cubic Feet | 354 |
| Maximum Adjusted Cubic Feet | 918 |
| Voltage | 240V |
| Phase | 1PH |
| Nominal Amps | 66.7 Amps (2-CIRCUITS) |
| Heater Weight | 92.6 lbs |
| Shipping Weight with Sauna Stones | 317.6 lbs |
| Width In Inches | 31" (787mm) |
| Depth In Inches | 13" (330mm) |
| Height In Inches | 33" (838mm) |
Manuals
Harvia Virta Pro Manuals:
Installation and Operation Manual
Harvia Xenio CX45 Manuals:
Installation and Operation Manual
Harvia Xenio Wifi Manuals:
Installation and Operation Manual
Model: Virta Pro HL160E
- Kilowatt Rating: 16 kW
- Primary Fuel: Electric
- Minimum Adjusted Room Size: 354 cu. ft.
- Maximum Adjusted Room Size: 918 cu. ft.
- Voltage: 240 V
- Phase: 1 PH
- Nominal Amperage: 66.7 A (2 circuits)
- Heater Weight: 92.6 lbs
- Shipping Weight (with Sauna Stones): 317.6 lbs
- Width: 31 in (787 mm)
- Depth: 13 in (330 mm)
- Height: 33 in (838 mm)
