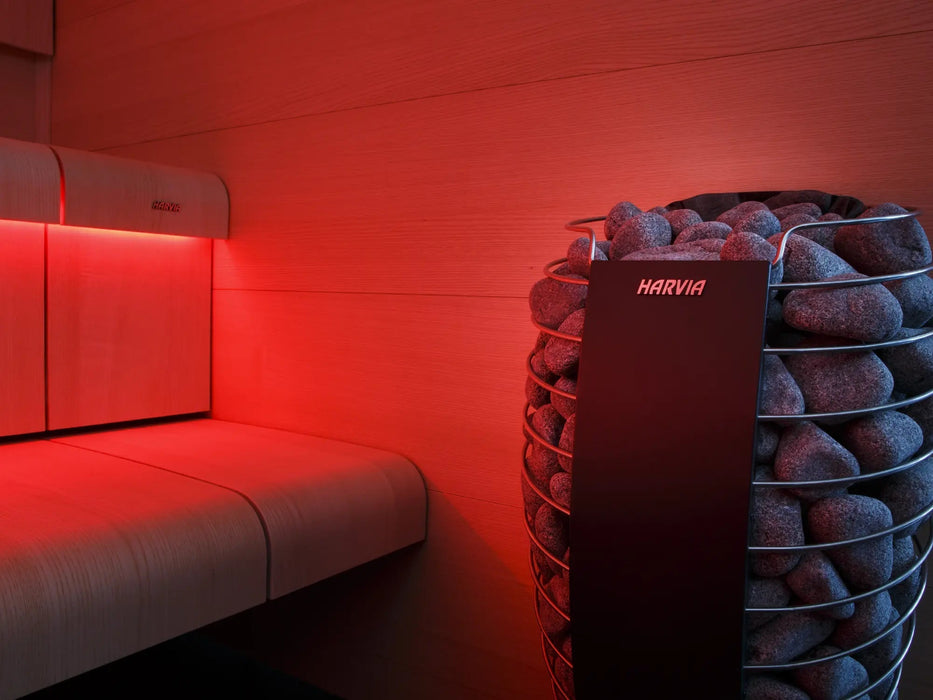

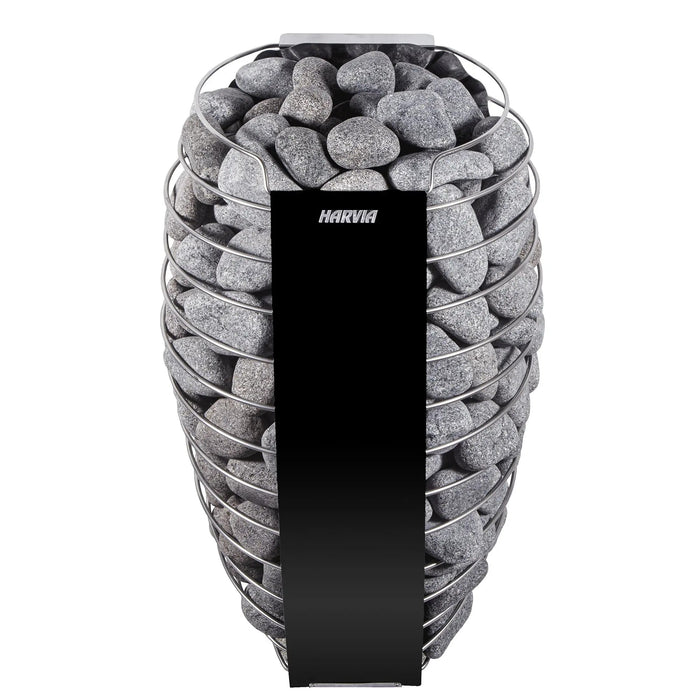

Harvia Spirit SP90E Electric Sauna Heater Package

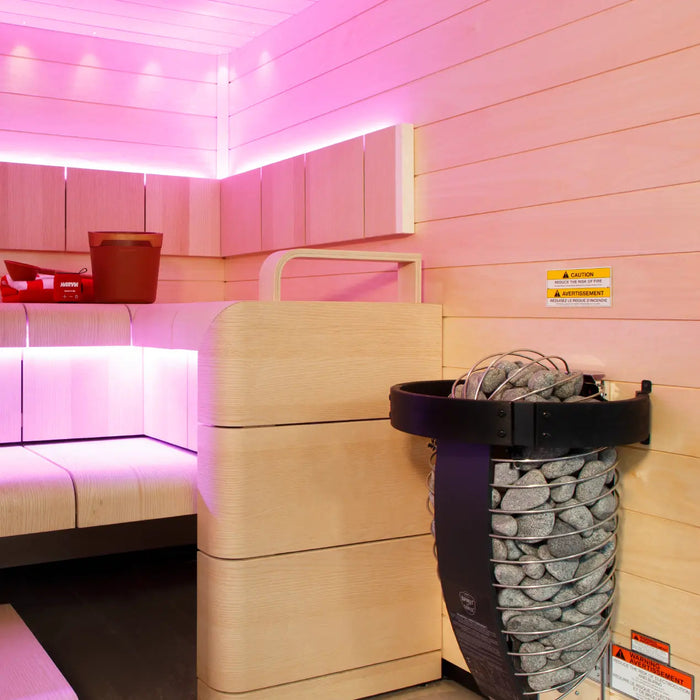

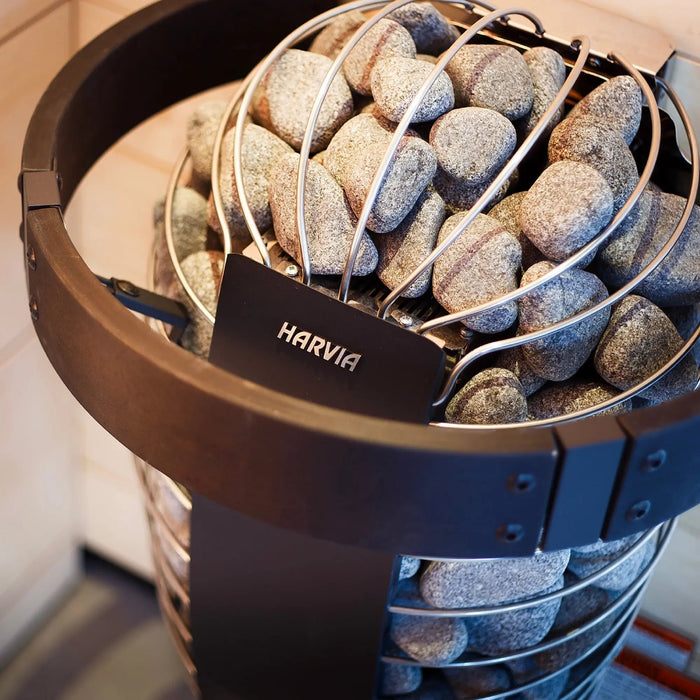

The elegantly curved shape of the Harvia 9kW Spirit SP90E sauna heater has a natural, organic design which is highlighted by the rounded sauna stones. This wall-mounted heater has a modern look and heats quickly to your preferred temperature. The large stone capacity of this heater provides a nice and even steam, which is exactly what you want from your heater.
This package includes everything you need to run your sauna.
Features
- Wall-mounted design
- Stylish and high-quality heater
- Heats up the sauna quickly and safely
- Integrated safety functions ensure safe use
- Compatible with the Xenio Controls
- Designed, engineered, and made in Finland
- For sauna rooms from 177 to 494 cu. ft.
- 110 pound stone capacity
- Dimensions: 15"W (38.1 cm) x 13.1"D (33.3 cm) x 29.5"H (74.9 cm)
Features of Harvia Xenio CX45 Sauna Control Package:
- For up to 17kw heaters (U1) and 15kw heaters (U3)
- Works with Spirit, Cilindro, Club and Virta series heaters (Not Combi)
- Contols operating time
- Controls temperature
- Controls lighting
- Controls fan
- Can be wall-mounted or surface embedded
- 3.4"W x 1"D x 4.4"H
About MyHarvia Application
- Control lighting
- Control of fan
- On-time feature
- Timed start feature
- Week Clock
- Safety device option
- Time zone selection
- Daylight saving selection
- Temperature adjustment
- Humidity adjustment
- Application not available in all countries
- Can be connected to unlimited amount of devices
- Access to control panel updates for the latest features and improved functions

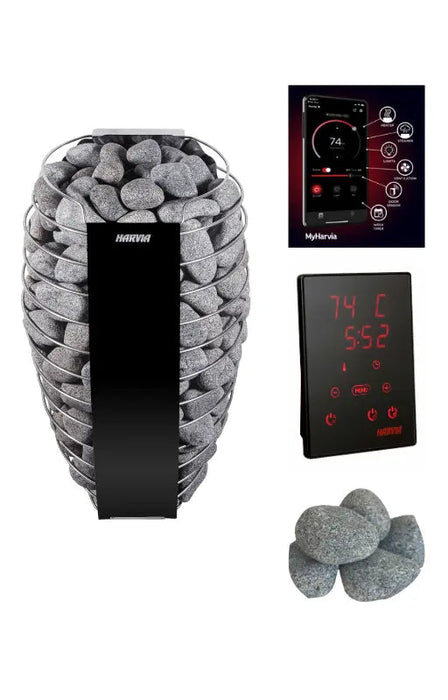

Package Includes
- Harvia Spirit SP90E Electric Sauna Heater x 1
- Harvia Xenio CX45 WiFi Sauna Control Package x 1
-
Harvia R-991 Special Sauna Stones x 4
Specifications
|
Model |
SP90E |
|
Room Size |
177-494 cu. ft. |
|
Wattage Rating |
9000 |
|
Voltage |
240 |
|
Phase |
1 |
|
Amperage |
37.5 |
|
Circuit Breaker |
|
|
Wire Size AWG |
8 |
|
Safety Listing |
ETL (Electrical Testing Laboratories) |
|
Minimum Ceiling Height |
82.7" (210 cm) |
|
Safety Distance (Front to Back) |
16.3" (41.4 cm) |
|
Safety Distance (Left to Right) |
21.4" (54.4 cm) |
|
Stone Capacity |
110 lbs (49.9 kg) |
|
Stone Size |
2" to 4" (5-10 cm) |
|
Width |
15" (38.1 cm) |
|
Depth |
13.1" (33.3 cm) |
|
Height |
29.5" (74.9 cm) |
|
Weight |
28.8 lbs (13.1 kg) |
|
Shipping Weight with Sauna Stones |
160.8 lbs (72.9 kg) |
Manuals
Harvia Spirit Manuals:
Harvia Xenio CX45 Manuals:
Installation and Operation Manual
Harvia Xenio Wifi Manuals:
Installation and Operation Manual
Model: SPIRIT SP90E PKG
- Included Heater Model: SP90E
- Room Size: 177–494 cu. ft.
- Wattage Rating: 9,000 W
- Voltage: 240 V
- Phase: 1
- Amperage: 37.5 A
- Circuit Breaker: See Installation and Operation Manual
- Wire Size (AWG): 8
- Safety Listing: ETL (Electrical Testing Laboratories)
- Minimum Ceiling Height: 75 in (190 cm)
- Safety Distance (Front to Back): See Installation and Operation Manual
- Safety Distance (Left to Right): See Installation and Operation Manual
- Stone Capacity: 110 lbs (49.9 kg)
- Stone Size: 2–4 in (5–10 cm)
- Width: 15 in (38.1 cm)
- Depth: 13.1 in (33.3 cm)
- Height: 29.5 in (74.9 cm)
- Unit Weight: 28.8 lbs (13.1 kg)
- Shipping Weight (with Sauna Stones): 160.8 lbs (72.9 kg)
Controller Model: CX45-U1-U3-XW
- Maximum Output: 10.8 kW
- Voltage: 240 V
- Phase: 1
- Temperature Adjustment Range: 104–194°F
- Pre-Setting Time Adjustment Range: 0–12 hours
- Width: 3.4 in (8.6 cm)
- Depth: 1 in (2.5 cm)
- Height: 4.4 in (11.2 cm)
Controller Model: FX45-U1-U3-XC
- Maximum Output: 10.8 / 15 kW
- Voltage: 240 / 208 V
- Phase: 1 / 3
- Temperature Adjustment Range: 104–194°F
- Pre-Setting Time Adjustment Range: 0–12 hours
- Width: 3.4 in (8.6 cm)
- Depth: 1 in (2.5 cm)
- Height: 4.4 in (11.2 cm)
